Planning a Kitchen Remodel Using the 3D Model Warehouse in SketchUp

One of my house goals for 2013 is to figure out how to makeover our kitchen on a shoestring budget. Like we're talking it was in the 10 year plan and now it's in the 1 year plan and we need to pay for daycare shoestring.

In case you weren't around then, when we moved in the kitchen looked like this.


At some point I lost it and painted the whole thing white.


That made me happy enough for a while. I mean we didn't exactly have the money for a full on makeover and at least it wasn't dark and dirty looking. Then last spring when we started the dishwasher and smoke came out so we replaced it.

Then a couple of months later I noticed Norie's milk was going bad faster than it should and there was condensation and mildew on the seal of the fridge. We replaced it with this beauty we also found as an open item and saved like 50 percent off the retail cost.


It's gorgeous and awesome, but while it isn't that noticeable in the picture, it's way bigger than the fridge that was meant to be in that spot. Like six full inches wider. Like it sticks out six inches past the end of the cabinet above it and covers the frame of the door.

At the same time there are six inches worth of spacers in the bottom cabinets. As in the fridge would actually fit with the bottom cabinets if the spacers weren't there). It wouldn't fit with the top cabinets.

In short, the cabinets don't make sense and need to be moved around to sort the whole thing out. Ever since we moved into the house I got the feeling that they were mis-measured or installed in the wrong places and whoever installed them was just too lazy to fix it. They clearly weren't super professional given the wonky nature of their installation. Someone should have invested in some shims and clamps. I would really hate to plan my whole remodel around an appliance configuration and sort out electrical and plumbing and move the cabinets all around and then realize after it was all done that I hated where the fridge was. It would be a major bummer.

All of this is back story to explain why I needed to use SketchUp to figure it out. Need might be a strong term, but I have some major appliance placement decisions to make and I NEED to actually see it to know for sure which way makes the most sense.

I started by drawing up the whole thing most of it as is. I got a little bored and stopped once I finished all the parts I knew I would keep.

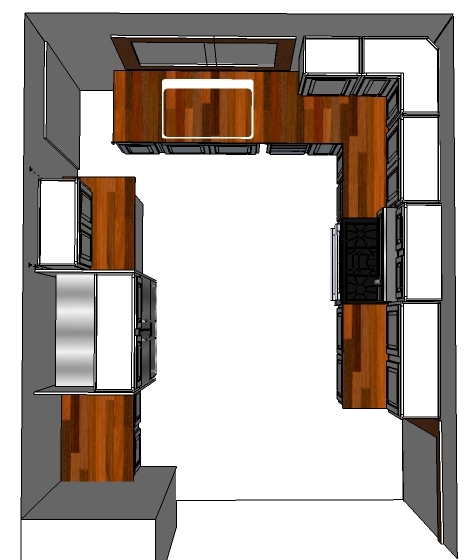

Here's what I'm thinking.



It's not done, but hopefully you get the idea. What do you think?
